AST Bolt-in Roll Cage BMW E30 Coupé AWD V1

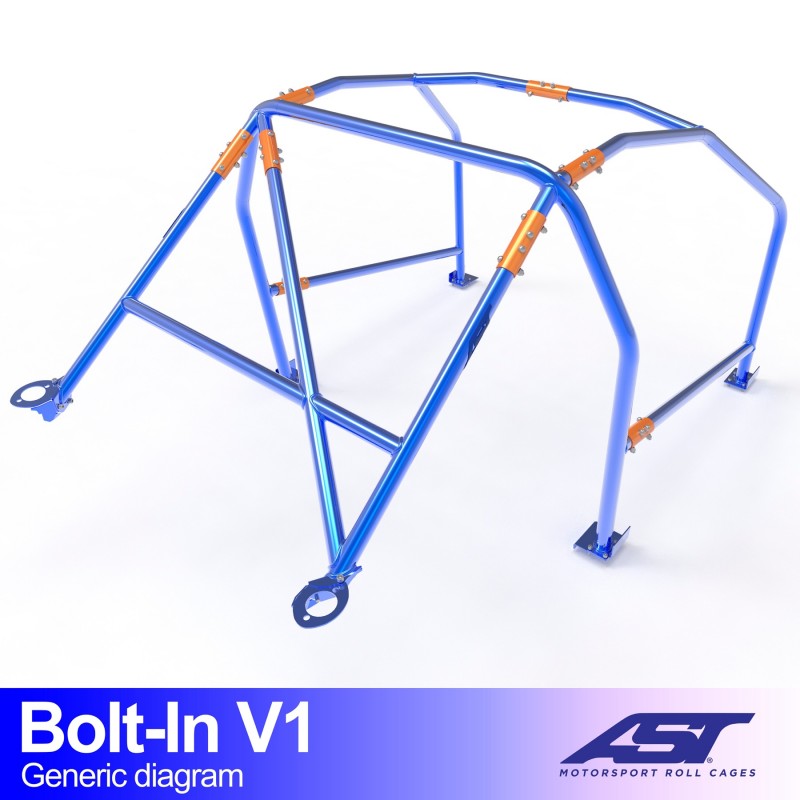

The AST Bolt-in Roll Cage BMW E30 Coupé AWD V1 is a full roll cage for the all-wheel-drive BMW E30 (the 325iX) with 2-door coupé bodywork. This Bolt-in E30 Coupé AWD V1 is the basic version, with a heavy main hoop and backstays secured at six bolting points. Please note: this is specifically the AWD version, intended for the 325iX and not for the rear-wheel-drive E30.

The cage is designed and built by AST Roll Cages in Spain, for 325iX drivers who want to prepare their car for drifting, track and rally with a structure that matches the correct floor shape.

Key benefits

• Specifically for the 325iX, tailored to the different floor and tunnel layout of the all-wheel-drive E30.
• Six bolting points on six foot plates welded to the bodyshell.
• Heavy main hoop in E355 steel with a diameter of 45 mm.
• Custom-made from a laser scan of the bodyshell.
• Supplied in sections with connecting sleeves, so the cage can pass through the doors.
• Complete kit with reinforcement plates, bolts, washers and nuts.
• Logical entry level within the range; AWD V2 to V4 add more bars step by step.

Suitable for

BMW 3 Series (E30), 2-door coupé, all-wheel drive (325iX)

• BMW 3 Series (E30) 2-door coupé with all-wheel drive, i.e. the 325iX
• Not suitable for the rear-wheel-drive E30; choose the RWD version for that car
• Type: bolt-in roll cage, version V1
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN05567
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: at the wheel arch
• Type: full roll cage, bolt-in (removable)
• Drive: all-wheel-drive E30 (325iX)
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 6 bolting points on 6 foot plates welded to the bodyshell
• Weight: 210 kg (manufacturer’s figure)
• Finish: welded and unpainted, split into sections via connecting sleeves
• Included: welded structure, connecting sleeves, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. The six foot plates are welded to the bodyshell and the cage is then bolted onto those plates. You should therefore allow for welding work during preparation. AST digitises the bodyshell with laser scanners and designs the cage in 3D so that it fits your car exactly.

The entry-level version of the AST bolt-in range, designed around the all-wheel-drive E30 325iX and not the rear-wheel-drive E30.

Why choose this Bolt-in E30 Coupé AWD V1 roll cage?

The 325iX has a different floor pan, a wider tunnel and a front axle construction that gets in the way of the standard E30 cage. This AWD version has been tailored to that from the design stage, so the foot plates land in the right places and you are not left improvising with a cage that is really meant for a different car. The V1 gives you that foundation at the lowest entry price.

Frequently asked questions

Exactly which E30 is this cage intended for?

The Bolt-in E30 Coupé AWD V1 is made for the all-wheel-drive E30, the 325iX, with 2-door coupé bodywork. If you drive a rear-wheel-drive E30, you need the RWD version; the two are not interchangeable.

What exactly will I receive?

You receive the welded structure in sections, the connecting sleeves, the reinforcement plates, the bolts, washers and nuts, the documentation, the fitting instructions and the sticker set. The cage is supplied unpainted, so you can choose the finish yourself.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
