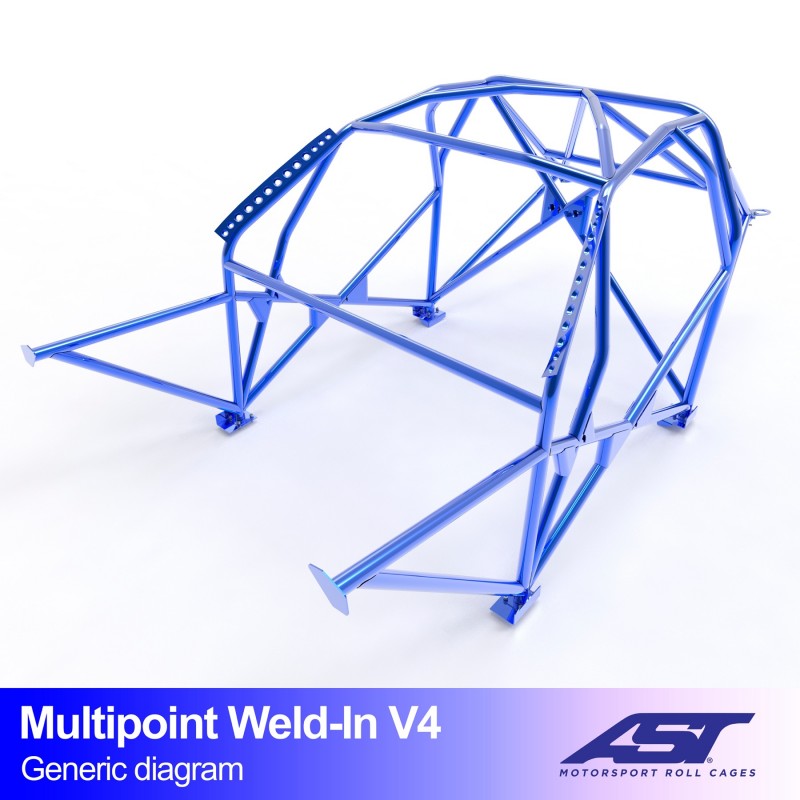

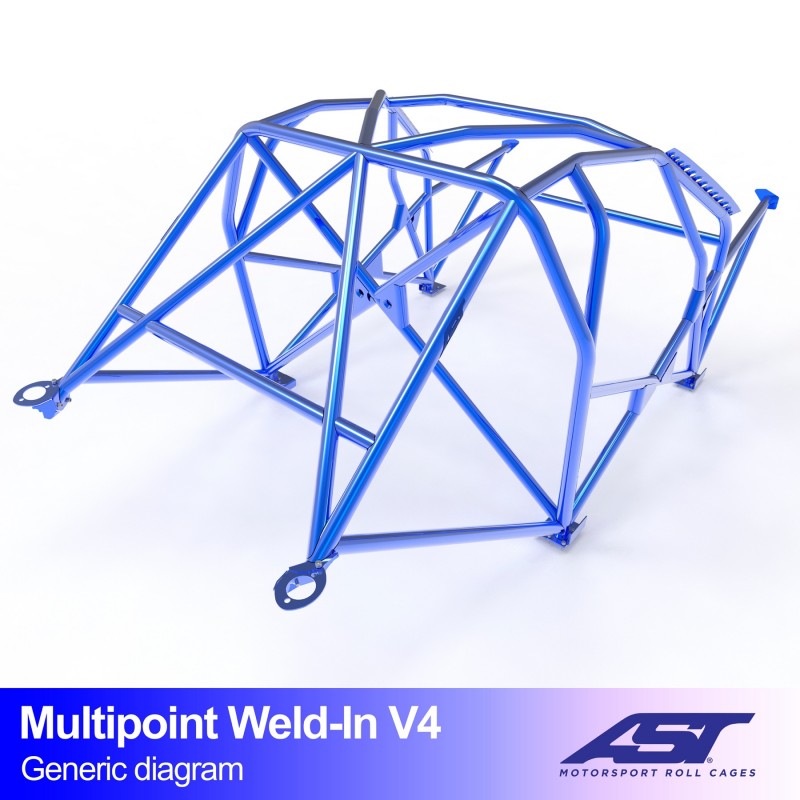

AST Multipoint Weld-in Roll Cage BMW F87 Coupé V4

The AST Multipoint Weld-in Roll Cage BMW F87 Coupé V4 is a full roll cage for the BMW 2 Series F87 with 2-door coupé bodywork. This Multipoint F87 Coupé V4 differs from the standard weld-in cage in having ten welded mounting points on the bodyshell instead of eight, combined with the full V4 bar package.

The cage is designed and built by AST Roll Cages in Spain, for M2 drivers who push their cars hard and want to spread the loads over as many points as possible.

Key benefits

• Ten welded mounting points instead of eight, spreading the loads across more areas of the bodyshell.
• Lower point loads at each attachment, which helps prevent cracks around the mountings in the long term.
• Full V4 specification: main hoop with braces, front bars to the bulkhead, door bars plus an extra diagonal brace and harness bar.
• Gussets and reinforcement plates in 3 mm steel, custom-designed for each car.
• Same weight as the eight-point version, at 71 kg according to the manufacturer’s figure.
• E355 tubing with a 45 mm main hoop and the rest of the structure in 40 mm.
• Unpainted weld-in kit including mounting hardware, documentation, fitting instructions and a sticker set.

Suitable for

BMW 2 Series F87, 2-door coupé

• BMW M2 (F87), the compact rear-wheel-drive two-door from 2016 to 2021
• Type: full multipoint weld-in roll cage, version V4
• Coupé only; AST does not offer a convertible version for this model
• Not interchangeable with its successor, the G87, which has its own cage
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN00681
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: V design
• Type: full roll cage, multipoint weld-in (permanent)
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot and reinforcement plates: 3 mm steel, custom-designed for each car
• Mounting: 10 welded mounting points on the bodyshell
• Weight: 71 kg (manufacturer’s figure)
• Finish: unpainted weld-in kit
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. Ten welded mounting points also means ten places where the bodyshell has to be bare and clean; expect the interior to be completely stripped out before the welder starts. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so that it fits your car exactly.

Ten welded mounting points spread the knocks an M2 takes on track across the entire floorpan.

Why choose this Multipoint F87 Coupé V4 roll cage?

The more points the cage shares with the bodyshell, the less each point has to endure. That makes a difference on a car that goes over kerbs every weekend or bounces sideways off the track. The ten attachment points of this version are above all an investment in the lifespan of the bodyshell, not just in safety at the critical moment.

Frequently asked questions

What is the difference from a standard weld-in cage?

The Multipoint F87 Coupé V4 has ten welded mounting points on the bodyshell, where the standard weld-in version uses eight. The V4 bar package is the same in both cases.

Can the car still be used on the road afterwards?

That depends on the rules in your country and on your insurance. The cage is intended for track and competition use and cannot be removed once fitted; the manufacturer does not state a homologation number for this product, so always check the regulations of your own organiser.

Does this cage fit a convertible or the G87?

No. It has been designed exclusively for the two-door F87 coupé. AST does not offer a convertible version for this model, and its successor, the G87, has its own cage, which is not interchangeable.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
