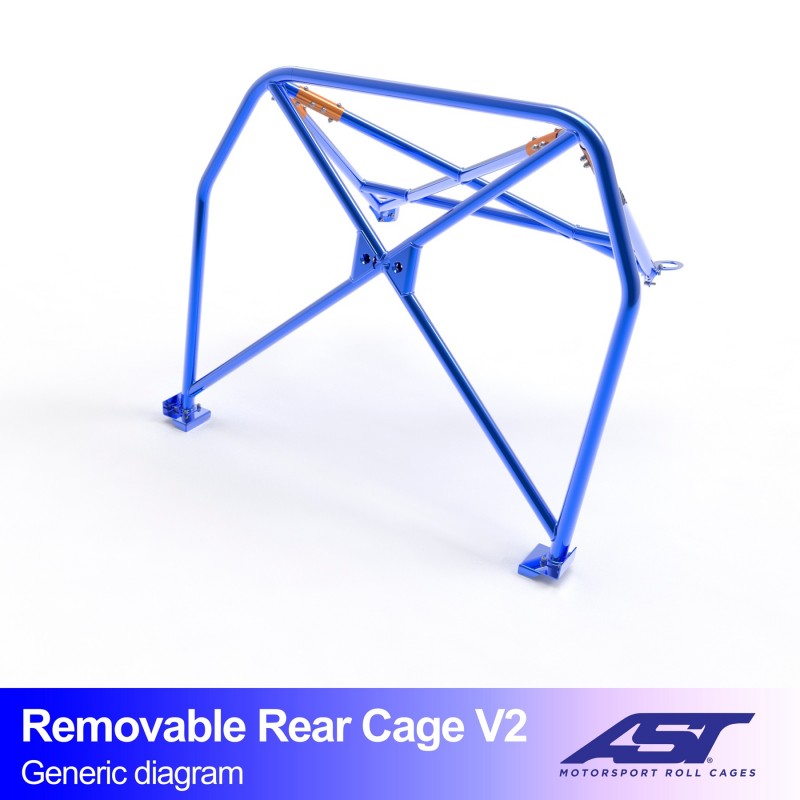

AST Removable Half Roll Cage BMW E30 Touring AWD V2

The AST Removable Half Roll Cage BMW E30 Touring AWD V2 is a half roll cage for the BMW 3 Series (E30) with 5-door Touring bodywork. This Removable Half Cage E30 Touring AWD V2 is built for the all-wheel-drive E30, the 325iX, and does not fit the rear-wheel-drive E30. Compared with the V1, you get a more extensive set of bars around the rear compartment, still fully removable via connecting sleeves.

The cage is designed and built by AST Roll Cages in Spain for 325iX drivers who want more rigidity and more mounting options at the rear than the entry-level version offers.

Key benefits

• More structure than the V1: extra tubes around the load area make the rear half of the bodyshell noticeably more rigid.
• Built on the iX chassis: designed on the all-wheel-drive E30 Touring rather than on a universal model.
• Fully removable: the connecting sleeves allow the cage to be taken out of the car in sections.
• Four welded foot plates: the cage is bolted onto foot plates that are first welded to the bodyshell.
• E355 tubes: 45 mm for the main hoop and 40 mm for the rest of the structure.
• 71 kg according to the manufacturer’s figure, so the impact on weight remains limited.
• Unpainted, so you decide for yourself how the cage is finished.
• Available for cars with and without a sunroof and with and without headlining – you choose this when ordering
• Rear anchorage in the rear suspension area or at the wheel arch; you choose this when ordering

Suitable for

BMW E30 3 Series, 5-door Touring, all-wheel drive

• BMW E30 3 Series Touring with all-wheel drive, the 325iX
• Not suitable for the rear-wheel-drive E30 Touring
• Type: half roll cage, version V2
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN00368
• Rear structure layout: X design
• Type: half roll cage, removable via connecting sleeves
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 4 bolting points on 4 foot plates welded to the bodyshell
• Weight: 71 kg (manufacturer’s figure)
• Finish: welded and unpainted, split into sections via connecting sleeves
• Included: welded structure, connecting sleeves, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. First the four foot plates are welded to the bodyshell in the correct position, then the cage is bolted onto them. Allow slightly more fitting time for V2 than for V1, as more tubes have to be put in place.

More structure at the rear for the 325iX Touring, without the cage having to stay in the car permanently.

Why choose this Removable Half Cage E30 Touring AWD V2?

If you regularly take your 325iX Touring on track or onto rally stages, you will find that the basic version falls short at some point. The V2 fills that gap with extra structure at the rear, while the removable design keeps the car usable. Because AST laser-scans the bodyshell and develops the cage in 3D, every tube connects exactly where it should.

Frequently asked questions

Does this cage also fit a rear-wheel-drive E30 Touring?

No. The Removable Half Cage E30 Touring AWD V2 is designed for the all-wheel-drive E30, the 325iX. For the rear-wheel-drive E30 Touring, AST offers a separate RWD version with its own part number.

What is the difference from V1?

The V2 has a more extensive set of bars around the rear compartment. The mounting principle stays the same: four bolting points on welded foot plates and connecting sleeves for removing the cage.

What if my car has a sunroof or headlining?

When ordering, please state whether your car has a sunroof and whether the headlining will stay in place, and AST will tailor the roll cage accordingly.

Where is the cage anchored at the rear?

You specify this when ordering: in the rear suspension area or at the wheel arch. AST builds the cage for the anchorage you choose.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
