AST Removable Roll Cage BMW 2002 V3

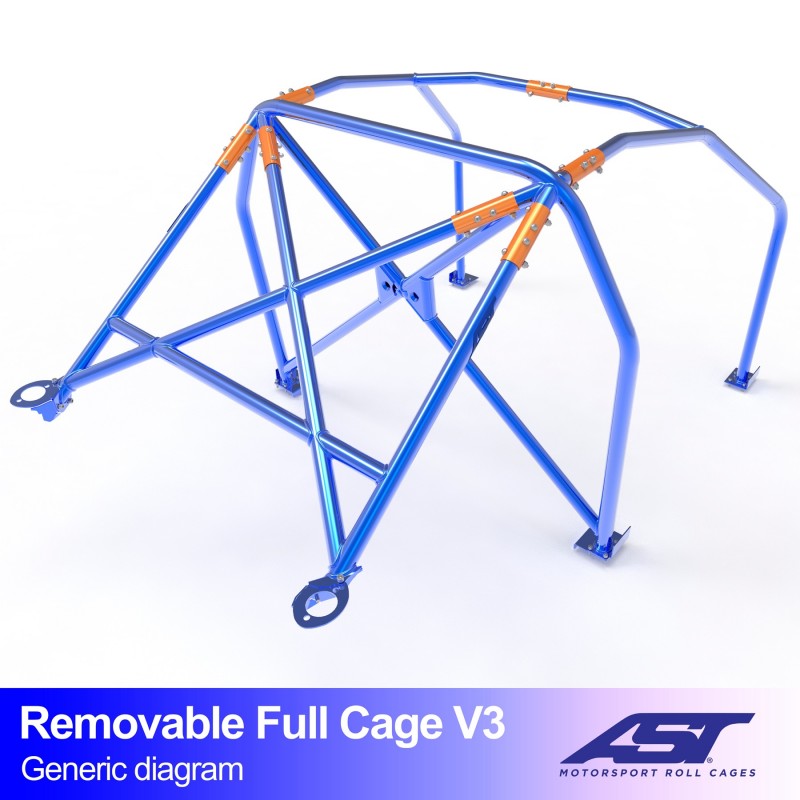

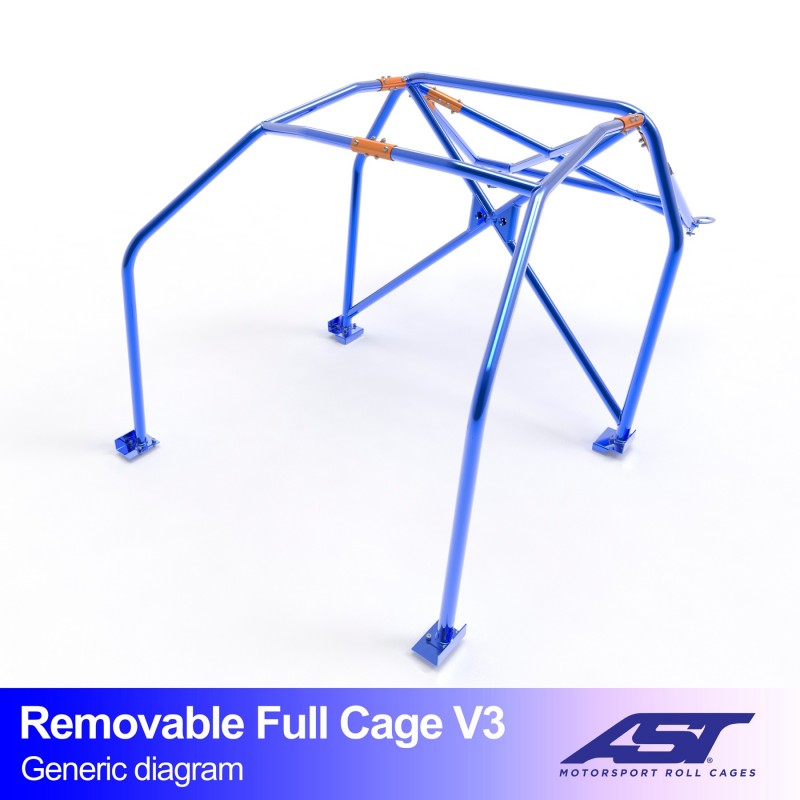

The AST Removable Roll Cage BMW 2002 V3 is a full roll cage for the BMW 2002 with 2-door coupé bodywork. This removable roll cage BMW 2002 V3 is the highest specification level among the removable full cages for this chassis and sits on six bolting points in the front and rear compartments.

The cage is designed and built by AST Roll Cages in Spain, for teams and drivers who compete with a classic 2002 and still want to keep the option of taking the structure out of the car.

Key benefits

• Highest specification level among the removable full cages for the 2002.
• Still removable: the sections are joined by connecting sleeves, even with this heavier package.
• Six bolting points on six foot plates welded to the bodyshell, at the front and rear of the car.
• E355 steel, main hoop 45 mm and rest of the structure 40 mm in diameter.
• Reinforcement plates included to spread the load across the sheet metal.
• Scanned car by car and designed in 3D, so the cage fits the tight interior.
• Supplied unpainted, with documentation, fitting instructions and a sticker set.

Suitable for

BMW 2002 (E10), 2-door Coupé

• BMW 2002 E10 2-door Coupé
• Type: full roll cage, version V3
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN00230
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: X design
• Type: full roll cage, removable via connecting sleeves
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 6 bolting points on 6 foot plates welded to the bodyshell
• Weight: 210 kg (manufacturer’s figure)
• Finish: welded and unpainted, split into sections via connecting sleeves
• Included: welded structure, connecting sleeves, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. At this specification level, fitting involves the most work: the interior comes out and the six foot plates are attached to the bodyshell by an experienced welder. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so that it fits your car exactly.

The most complete removable structure AST designs for the classic 2002.

Why choose this removable roll cage BMW 2002 V3?

In a competition car, you don’t want the minimum safety structure, you want the right one. This version gives you the heaviest package in the removable range while retaining the feature many 2002 owners value: you can take the cage out without grinding or welding on the car.

Frequently asked questions

Who is this version for?

The removable roll cage BMW 2002 V3 is aimed at competition drivers and anyone who wants the maximum level of protection in this range. For track days and occasional use, a lower version is usually sufficient.

Is this cage homologated?

AST does not list a homologation number for this item. The structure is made for track and competition use; check it beforehand against the regulations of your organiser or federation.

What is included in the delivery?

You receive the welded structure in sections, the connecting sleeves, reinforcement plates, all bolts, washers and nuts, documentation, fitting instructions and the sticker set. The cage is unpainted.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.

Delivery outside the European Union: different shipping costs may apply. Don’t worry: we will email you as soon as possible after your order and agree the shipping with you. You are not committed to anything without your consent.
