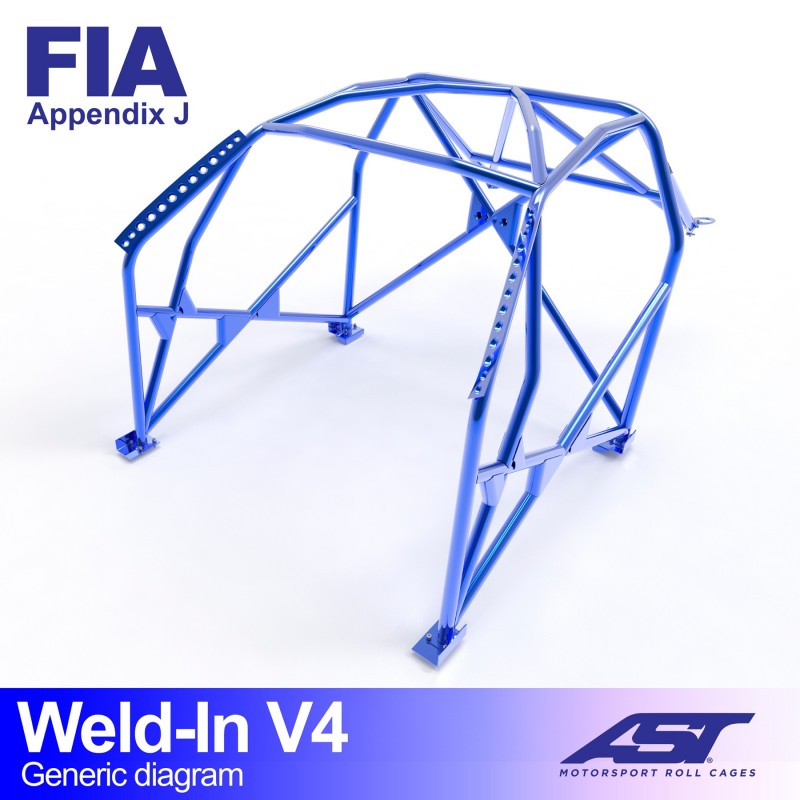

AST Weld-in Roll Cage BMW E21 Coupé V4

The AST Weld-in Roll Cage for the BMW E21 Coupé V4 is a full roll cage for the BMW 3 Series E21 with 2-door coupé bodywork. This weld-in E21 Coupé V4 includes everything from the V3 and adds an extra diagonal brace and a harness bar.

The cage is designed and built by AST Roll Cages in Spain for drivers who use their E21 seriously and want to attach their harness to the cage rather than to the original body mounting points.

Key benefits

• Harness bar gives the shoulder straps a welded mounting point behind the seats.
• Extra diagonal brace keeps the roof plane in shape and spreads the loads in a rollover.
• Door bars and front bars from the V3 and V2 are fully retained.
• Eight welded mounting points make the structure a permanent part of the car.
• E355 steel, 45 mm main hoop and 40 mm for the rest of the structure.
• Custom-made via laser scan, so the harness bar sits at the right height behind your bucket seats.
• Complete package with gussets, reinforcement plates, mounting hardware and instructions.

Suitable for

BMW 3 Series E21, 2-door Coupé

• BMW 3 Series E21 Coupé, years of manufacture 1975 to 1983
• Type: weld-in roll cage, version V4
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN06870
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: V design
• Type: full roll cage, weld-in (permanent)
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 8 welded mounting points on the bodyshell
• Weight: 71 kg (manufacturer’s figure)
• Finish: unpainted weld-in kit
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set
• FIA homologation numbers: A-5623, A-5620, A-5100, A-5093 and A-5014 (as stated by AST Roll Cages, for the BMW 316, 320, 320i, 320/6 and 323i)

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. AST digitises the bodyshell with laser scanners and designs the cage in 3D so that it fits your car exactly. Put your bucket seats in their final position before the harness bar is welded in, as its height has to match your shoulder straps.

With the harness bar, your harness is anchored to the cage itself rather than to the sheet metal of a car from the seventies.

Why choose this Weld-in E21 Coupé V4 roll cage?

As soon as you drive with bucket seats and a four-point or six-point harness, you want a harness bar. The V4 comes with one as standard, designed in the right position for the E21 Coupé, plus an extra diagonal that makes the whole structure more settled under load. That is the point at which this cage goes from safe to race-ready.

Frequently asked questions

What is the harness bar in the weld-in E21 Coupé V4 for?

The harness bar runs behind the seats and serves as the mounting point for the shoulder straps of your harness, at a height that suits the seating position in the E21 Coupé.

What does the extra diagonal brace add?

The diagonal connects the corners of the structure and keeps everything in shape under torsion or in a rollover, so the cage is less prone to deforming.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
