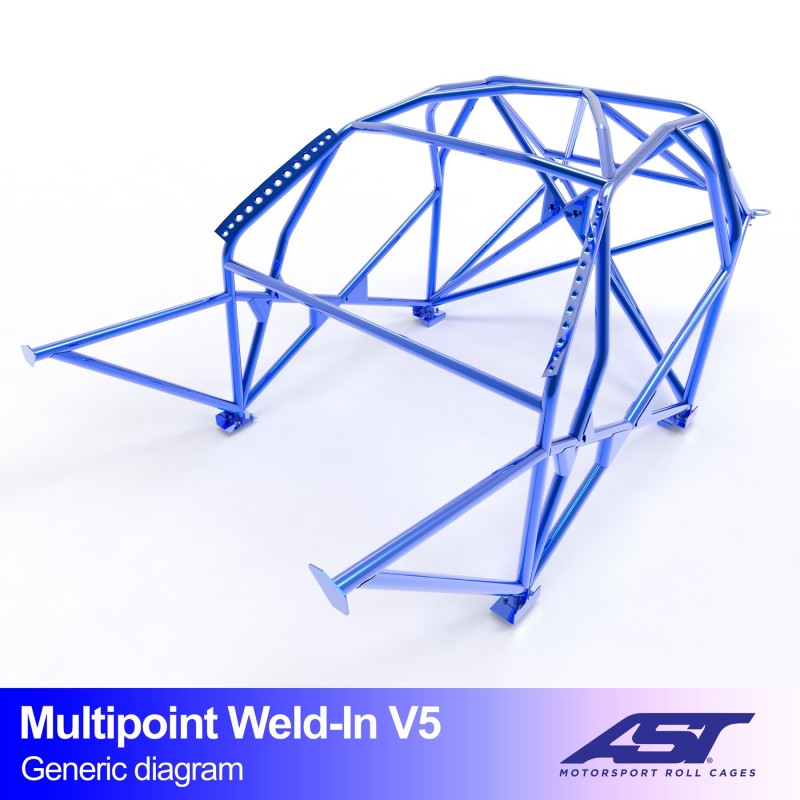

AST Multipoint Weld-in Roll Cage Toyota MR2 W30 2-door Roadster V5

The AST Multipoint Weld-in Roll Cage Toyota MR2 W30 2-door Roadster V5 is a full roll cage for the Toyota MR2 W30 with two-door roadster body, welded to the body at ten points. This Multipoint Roll Cage MR2 W30 V5 is supplied as a welding kit and welded into one unit in the car.

The difference with the standard weld-in range lies in the anchoring: ten weld points instead of eight. The extra points spread the forces even better over the body and make the connection between cage and shell stiffer. The V5 is the most extensive multipoint cage for the Toyota MR2 W30, with the most tubing of the range.

Key benefits

• Choice of roof: when ordering you tell us whether your car has the original hard top.
• Ten weld points: two more than the standard weld-in range.
• Better force distribution: more anchoring means less load per point.
• Anchored at the rear: in the trunk area.
• Most extensive multipoint cage: the most tubing of the range.
• Gussets included: to reinforce the joints.
• E355 steel: 45 mm diameter main hoop, 40 mm for the rest of the structure.
• Custom base plates: 3 mm thick steel, designed per car rather than universal.
• Exact fit: the body is digitised with laser scanners before the cage is drawn in 3D.
• Complete kit: supplied unpainted with fixings, documentation, installation manual, sticker set and welding test sample.

Fits

Toyota MR2 W30, 2-door Roadster

• Toyota MR2 W30 two-door roadster
• Version: full roll cage, multipoint weld-in, V5
• Drift, circuit use, track days and competition

This cage is designed for the two-door roadster of the Toyota MR2 W30 and does not fit other body styles or generations.

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN03445
• Rear anchoring: in the trunk area
• Rear structure shape: V design
• Type: full roll cage, multipoint weld-in
• Main hoop: E355 steel, 45 mm diameter
• Other structure: E355 steel, 40 mm diameter
• Base plates: 3 mm steel, designed per car
• Mounting: 10 weld points on the body
• Weight: 210 kg
• Finish: welding kit, unpainted
• Included: welding kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, installation manual, sticker set and welding test sample

Installation and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. It comes as a welding kit and is welded into one unit in the car. Work from the back to the front: first the main hoop and the ten-point anchoring, then the front bars. Leave the welding to someone with experience in roll cages and use the included welding test sample to check the settings beforehand. On a Toyota MR2 W30 of this age, check beforehand that the mounting areas are free of rust: welding onto corroded panels gives a cage that will not do its job in a crash. This cage is intended for circuit and competition use; check the regulations of your own motorsport organisation beforehand.

Ten weld points instead of eight: the same basis, but anchored more firmly in the body.

Why choose this Multipoint Roll Cage MR2 W30 V5?

For anyone who wants a weld-in cage with the strongest possible connection to the body, the multipoint range is the logical choice. The V5 combines the ten-point anchoring with more tubing than the lower versions, for a Toyota MR2 W30 that is used fully in competition.

Frequently asked questions

What do I have to tell you about the roof?

When ordering you choose whether the cage has to suit a car with the original hard top or one without. Choose what matches your car.

What is the difference with the standard Weld-in V5?

The Multipoint Roll Cage MR2 W30 V5 is welded in on ten points instead of eight. That spreads the forces better over the body.

Can I weld the cage in myself?

Only if you have experience welding roll cages. A poor weld takes the strength out of the structure. If in doubt, leave it to a specialist.

Does this cage also fit other versions of the Toyota MR2 W30?

No. This cage is designed for the two-door roadster. Other body styles and generations have a different structure.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days, because AST builds every cage to order.
