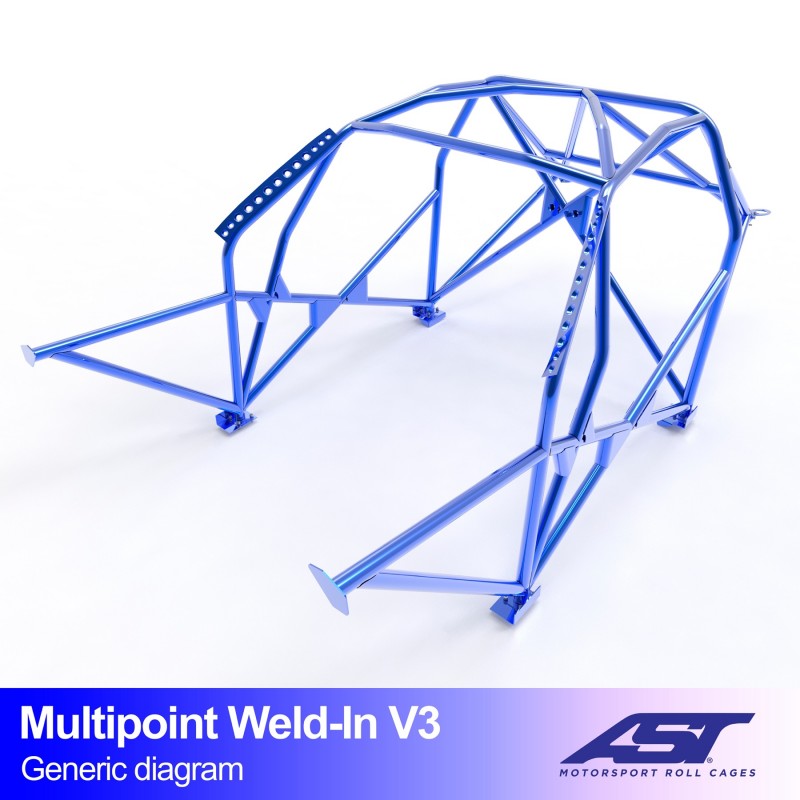

AST Multipoint Weld-in Roll Cage Nissan Skyline R34 Coupé V3

The AST Multipoint Weld-in Roll Cage Nissan Skyline R34 Coupé V3 is a full roll cage for the Nissan Skyline R34 with two-door coupé body, welded to the body at ten points. This Multipoint Roll Cage R34 V3 is supplied as a welding kit and welded into one unit in the car.

The difference with the standard weld-in range lies in the anchoring: ten weld points instead of eight. The extra points spread the forces even better over the body and make the connection between cage and shell stiffer. The V3 has a V-shaped rear structure and more tubing than the V2.

Key benefits

• Ten weld points: two more than the standard weld-in range.
• Better force distribution: more anchoring means less load per point.
• Anchored at the rear: in the rear suspension area.
• V-shaped rear structure: the rear is built as a V.
• Gussets included: to reinforce the joints.
• E355 steel: 45 mm diameter main hoop, 40 mm for the rest of the structure.
• Custom base plates: 3 mm thick steel, designed per car rather than universal.
• Exact fit: the body is digitised with laser scanners before the cage is drawn in 3D.
• Complete kit: supplied unpainted with fixings, documentation, installation manual, sticker set and welding test sample.

Fits

Nissan Skyline R34, 2-door Coupé

• Nissan Skyline R34 Coupé, including 25GT-t and GT-R
• Version: full roll cage, multipoint weld-in, V3
• Drift, circuit use, track days and competition

The R34 exists as a coupé and as a four-door sedan. This cage is designed for the two-door coupé and does not fit the sedan.

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN06040
• Sunroof: suitable for a roof without sunroof
• Headlining: suitable for a roof without headlining
• Rear anchoring: in the rear suspension area
• Rear structure shape: V design
• Type: full roll cage, multipoint weld-in
• Main hoop: E355 steel, 45 mm diameter
• Other structure: E355 steel, 40 mm diameter
• Base plates: 3 mm steel, designed per car
• Mounting: 10 weld points on the body
• Weight: 210 kg
• Finish: welding kit, unpainted
• Included: welding kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, installation manual, sticker set and welding test sample

Installation and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. It comes as a welding kit and is welded into one unit in the car. Work from the back to the front: first the main hoop and the ten-point anchoring, then the front bars. Leave the welding to someone with experience in roll cages and use the included welding test sample to check the settings beforehand. On a R34 of this age, check beforehand that the mounting areas are free of rust: welding onto corroded panels gives a cage that will not do its job in a crash. This cage is intended for circuit and competition use; check the regulations of your own motorsport organisation beforehand.

Ten weld points instead of eight: the same basis, but anchored more firmly in the body.

Why choose this Multipoint Roll Cage R34 V3?

For anyone who wants a weld-in cage with the strongest possible connection to the body, the multipoint range is the logical choice. The V3 combines the ten-point anchoring with more tubing than the lower versions, for a R34 that is used fully in competition.

Frequently asked questions

What is the difference with the standard Weld-in V3?

The Multipoint Roll Cage R34 V3 is welded in on ten points instead of eight. That spreads the forces better over the body.

Can I weld the cage in myself?

Only if you have experience welding roll cages. A poor weld takes the strength out of the structure. If in doubt, leave it to a specialist.

Does this cage also fit an R34 sedan?

No. This cage is designed for the two-door coupé. The four-door sedan has a different rear body structure.

Does it fit a GT-R?

Yes, as long as it is an R34 coupé. The cage sits in the interior and has nothing to do with the four-wheel drive of the GT-R.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days, because AST builds every cage to order.
