Description
BC Racing RM coilover kit BMW 1M Coupe E82 (11-12) 7/12 kg/mm
The BC Racing RM coilover kit 1M Coupe (part number I-21-RM-MA) is a coilover kit adjustable in height and damping, also simply called a coilover, for the BMW 1M Coupe (E82, wide body, 3.0 turbo), model years 2011 to 2012. The spring rate is 7 kg/mm front and 12 kg/mm rear.
The RM series is BC Racing’s coilover kit for track days, hill climbs and tarmac rally, and for the 1M Coupe it has its own spring rate of 7 kg/mm front and 12 kg/mm rear. This makes it slightly stiffer at the front than the BR and DS kits for the 1M (6.5 kg/mm).
On MacPherson struts BC Racing uses an inverted monotube for the RM, on other suspension types an upright monotube. The dampers have a digressive piston and fully synthetic oil with a very high viscosity index, and you adjust them in 30 clicks.
Key benefits
- Spring rate 7/12 kg/mm: slightly stiffer at the front than the BR and DS kits for the 1M.
- Inverted monotube on MacPherson struts: the design of the RM series.
- Digressive piston: plenty of control over roll and dive.
- Fully synthetic oil: with a very high viscosity index.
- 30-click damping adjustment: compression and rebound adjusted in one go.
- Stepless ride height adjustment: via the damper body.
- Pillowball top mounts at the front: or camber plates, and rubber or the factory mounting at the rear.
- Rebuildable: the dampers can be rebuilt.
Suitable for
BMW 1M Coupe (E82) with wide body and 3.0 turbo engine, model years 2011 to 2012; not for other E82 Coupes and not for the E81, E87 and E88
- Track days and circuit training sessions with the 1M
- Hill climbs and tarmac rally
- A 1M used mainly for motorsport
Technical specifications
- Manufacturer: BC Racing
- Part number: I-21-RM-MA
- Series: RM, for track days, hill climbs and tarmac rally
- Spring rate front/rear: 7/12 kg/mm
- Damper design: inverted monotube on MacPherson struts, upright monotube on other suspension types; fully synthetic oil with a very high viscosity index
- Damping: 30 clicks, compression and rebound simultaneously, digressive
- Ride height: steplessly adjustable via the damper body
- Top mounts: pillowball top mounts or camber plates at the front, rubber or original mounting at the rear

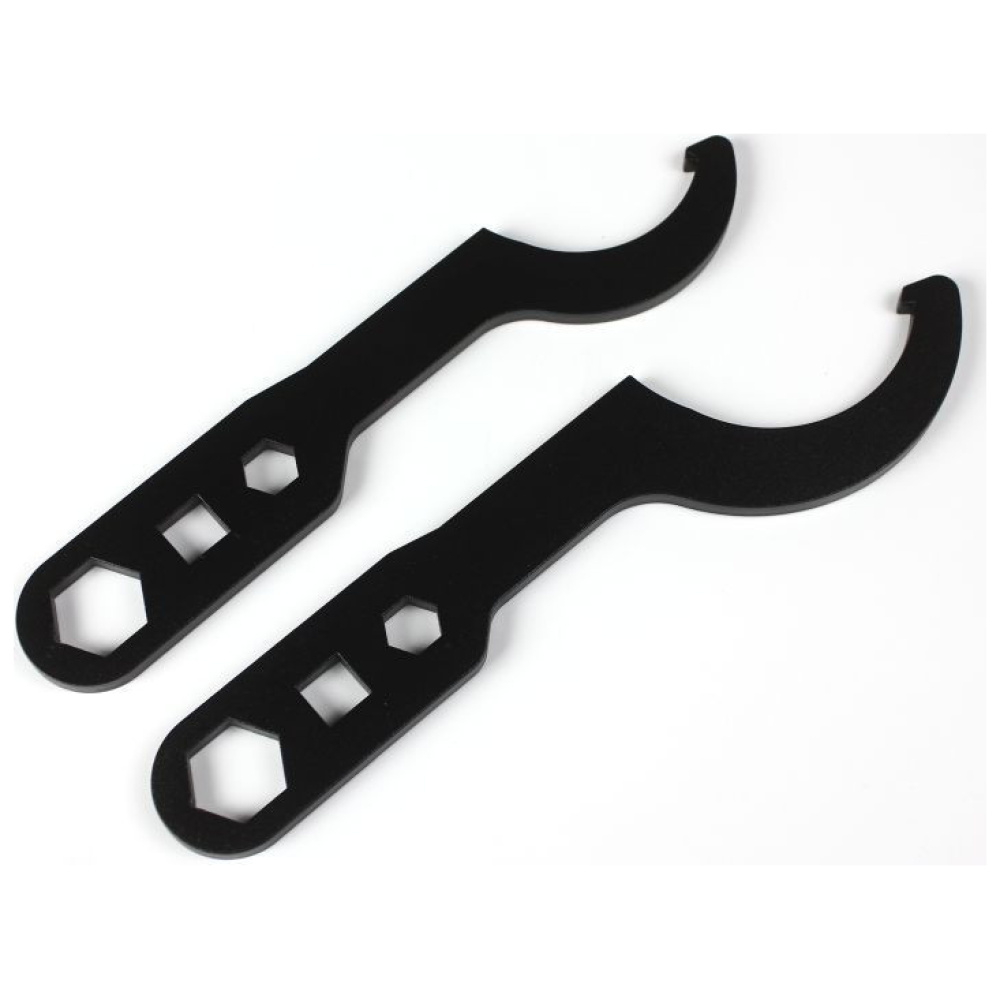

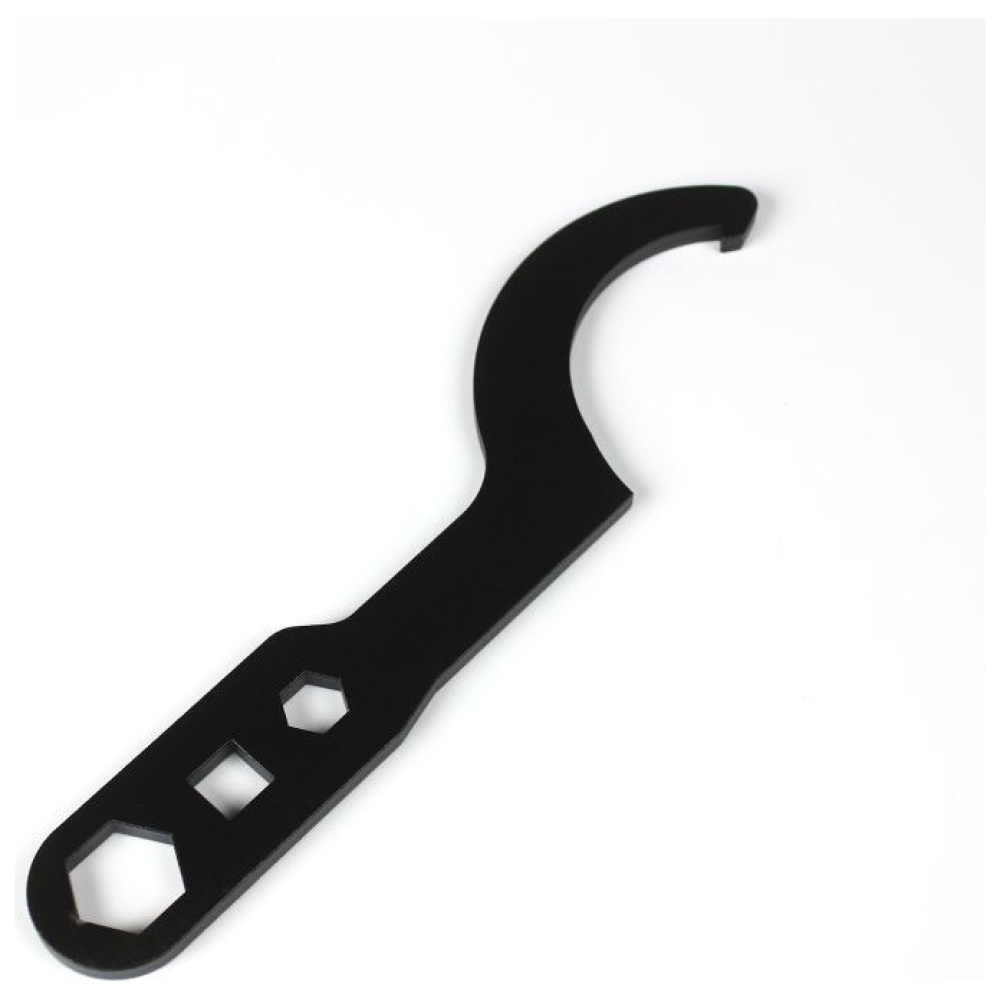

- Contents: dampers and springs front and rear, lower mounts, top mounts where applicable, adjustment spanners and warranty card with serial number
- Warranty: 1 year on manufacturing defects; noise from track use is not covered by the warranty
Fitting and delivery
The kit is vehicle-specific and replaces the original dampers and springs. We recommend having it fitted by an experienced mechanic. BC Racing advises periodic greasing for the RM and ZR series and recommends them less for road use than the BR, DS, ER or ZX. After setting the ride height, also have the wheel alignment readjusted, because camber and toe change as well. The delivery time is 1 to 2 weeks as long as the manufacturer has stock. If it is temporarily not in stock at BC Racing, you can still order and we will let you know the expected delivery date.
The BC Racing RM kit I-21-RM-MA for the BMW 1M Coupe has springs of 7 kg/mm front and 12 kg/mm rear, a digressive piston and fully synthetic oil.
Why choose this RM coilover kit 1M Coupe?
A 1M Coupe that you use for hill climbs or tarmac rally calls for a suspension set up for that work. That is what BC Racing made the RM series for, with fully synthetic oil, a digressive characteristic and, for the 1M, slightly stiffer front springs. Do allow for periodic greasing; for road use, BC Racing recommends the BR or DS instead.
BC Racing coilover kits for the BMW 1M Coupe
Overview of the BC Racing series for the BMW 1M Coupe supplied by Race4DriftParts, with the BC Racing part number. Spring rates in kg/mm, front/rear.
| Series | Part number | Springs f/r | Damping | Intended for |
|---|---|---|---|---|
| BR | I-21-BR-RA | 6.5/12 | 30 clicks, linear, pillowball top mounts front | Road with the occasional track day |
| DS | I-21-DS-DA | 6.5/12 | 30 clicks, digressive, pillowball top mounts front | Track-focused, sporty road use |
| RM (this kit) | I-21-RM-MA | 7/12 | 30 clicks, digressive, synthetic oil, pillowball top mounts front | Track days, hill climbs, tarmac rally |
For the regular BMW 1 Series E81, E82 and E87 (not the 1M Coupe), BC Racing has separate kits. Their part numbers start with I-11.
Frequently asked questions
Does the BC Racing RM coilover kit I-21 fit a regular BMW 1 Series E82?
No, this kit is only for the 1M Coupe with wide body and 3.0 turbo engine (2011 to 2012). For the other E82 Coupes and the E81 and E87, BC Racing supplies the I-11 kits, including an RM version (I-11-RM-MA).
What is the difference between the BC Racing RM and DS coilover kits for the BMW 1M Coupe?
The RM is made for track days, hill climbs and tarmac rally, the DS for track use where the car is also still driven on the road. The RM coilover kit 1M Coupe has slightly stiffer front springs (7 kg/mm versus 6.5 kg/mm) and fully synthetic oil. BC Racing recommends the RM less for road use and advises periodic greasing.
Is the BC Racing RM coilover kit for the 1M Coupe rebuildable?
Yes, the dampers can be rebuilt. After a season of intensive use, you can therefore have them rebuilt instead of replaced. Also keep in mind the periodic greasing that BC Racing advises for the RM series.
What is the delivery time of the BC Racing RM coilover kit for the BMW 1M Coupe?
The delivery time is 1 to 2 weeks as long as the manufacturer has stock. If it is temporarily sold out, you can still order the kit and we will let you know when it has arrived.
Delivery outside the European Union: different shipping costs may apply. Don’t worry: we will email you as soon as possible after your order and agree the shipping with you. You are not committed to anything without your consent.
