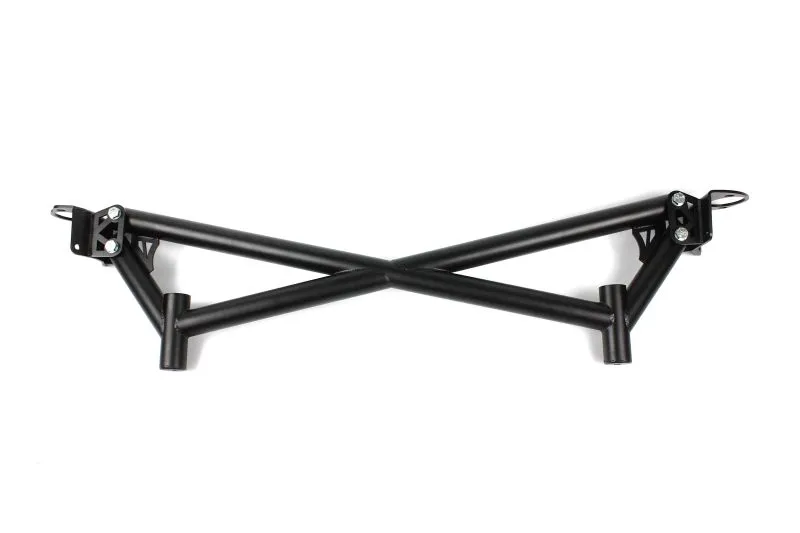

BMW E46 4-Point X-Brace Rear, Strut Brace

The E46 4 point X brace is an extended strut brace for the rear of the BMW E46 coupé, saloon and Touring. It is attached to the strut towers and runs crosswise to the rear subframe mount. This makes the rear end stiffer and gives the subframe points extra support, which benefits handling and safety.

If you drift, go on track or simply drive with a lot of power, an E46 4 point X brace is a logical step to strengthen the area around the rear subframe mount. On an older road car with high mileage, too, it gives the body around the rear axle extra support.

Key benefits of the E46 4 point X brace

• Cross shape with four points: the towers and the subframe area are connected to each other
• Extra support for the subframe mount of the rear subframe
• Built from 40 x 2 mm roll cage tube
• Mounting cups laser-cut and bent on a CNC press brake
• Pressed mounting holes for extra strength
• MIG/MAG-welded in welding jigs by a certified welder
• Powder-coated black, bolts included

Suitable for

BMW 3 Series E46

• BMW E46 coupé
• BMW E46 saloon
• BMW E46 Touring

Technical specifications

• Item number: 0213
• Type: extended rear X-brace with 4 mounting points
• Tube: 40 x 2 mm, roll cage tube type
• Mounting cups: laser-cut, CNC-bent, pressed holes
• Welding: MIG/MAG in special welding jigs
• Finish: black powder coating
• Included: mounting bolts
• Weight: 6.50 kg

Installation and delivery

For installation, you cut holes in the boot floor at the subframe mount locations, where the feet of the brace go. The top is secured to the strut towers. The photos in the gallery show what that looks like, and the bolts are included.

Measure carefully first and treat the cut edges against rust. Retighten all bolts after the first day of driving. You will find more braces and reinforcements under X-brace and sump guard and among our strut braces. If the subframe of your E46 is already affected, also take a look at the reinforcement kit for the rear subframe.

A cross in the back that links the strut towers and the subframe mount of your E46.

Why choose an E46 4 point X brace?

A simple strut brace only links the towers. The E46 4 point X brace continues to the subframe mount and gives that area extra support. With roll cage tube, pressed holes and welding in fixed jigs, you get a part that is sturdy and fits neatly. The black powder coating protects the steel and hardly stands out in the boot, whatever the colour of your car.

Frequently asked questions

Which E46 models does this brace fit?

The E46 4 point X brace fits the E46 coupé, saloon and Touring.

Does anything on the car need to be modified?

Yes, mounting holes have to be cut out. The photos show where.

Are the bolts included?

Yes, the mounting bolts are supplied with the E46 4 point X brace.

How much does the brace weigh?

The brace weighs 6.50 kg.

Do I need a welder?

No, the brace is bolted in. You do need tools to cut the mounting holes neatly, such as a hole saw or an angle grinder, and an anti-rust product for the edges.

Is the brace also useful on a road car?

Yes. In daily use too, the brace gives the rear end more stiffness and the subframe mount extra support. If you are not sure whether it suits your project, just send us a message.
