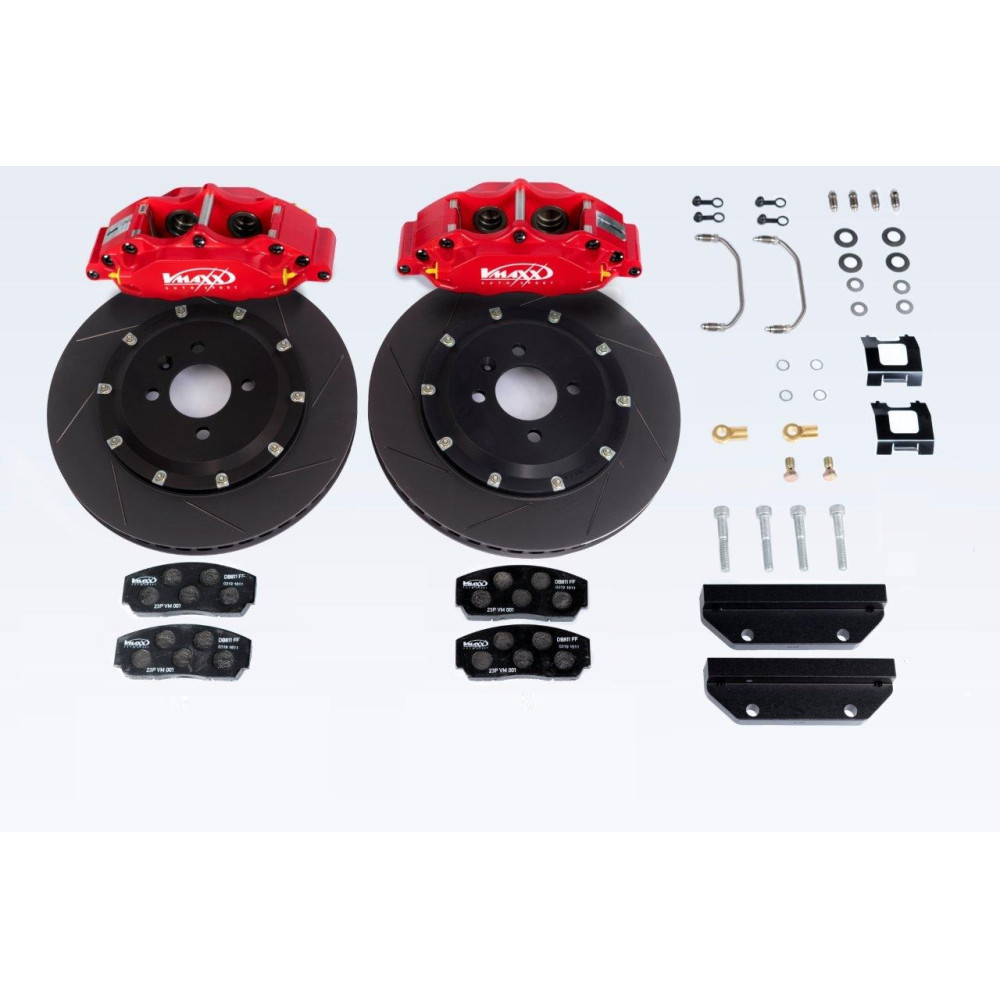

Volkswagen Golf 3 / Corrado / Passat 35i / Vento V-Maxx Big Brake Kit 330 mm 4-piston (PCD 4×100)

This big brake kit Golf 3 from V-Maxx is the 330 mm version for Volkswagens with PCD 4×100: the Golf III, the Golf IV Convertible, the Vento, the Corrado and the Passat 35i. The front axle gets 330 mm two-piece brake discs and 4-piston calipers made of forged aluminium, complete with sport brake pads and vehicle-specific adapters.

On the track, the braking power of the original brakes drops noticeably after a few hard stops. This kit gives the front axle more braking power and much less fade.

V-Maxx Autosport is a Dutch manufacturer and gives a 2-year warranty. With the TÜV certificate according to §19.3, the kit is approved for use on public roads.

Key benefits

• For PCD 4×100: for cars with 5×100, V-Maxx has a separate 330 mm kit
• 330 mm two-piece brake discs, grooved, made of high-carbon steel with ultra-light floating aluminium bells
• 4-piston calipers made of forged aluminium, red (RAL 3020) as standard
• Faster cooling: caliper, bracket and bell are made of aluminium and the discs have directional cooling channels
• Complete kit: includes V-Maxx sport brake pads with TÜV approval and adapters for the original rubber brake hoses
• TÜV §19.3 for public roads and 2-year warranty

Suitable for

Volkswagen Golf III, Golf IV Convertible, Vento, Corrado and Passat 35i with PCD 4×100 (1987 to 2002)

• Golf III, Golf III Variant and Golf III Convertible (1HXO), 08-1991 to 11-1998: all versions, only with original rear disc brakes and PCD 4×100
• Golf IV Convertible (1HXO), 08-1998 to 2002: all versions, only with original rear disc brakes and PCD 4×100
• Vento (1HXO), 11-1991 to 11-1998: all versions with PCD 4×100 and original rear disc brakes
• Corrado (53i), 08-1987 to 12-1995: all versions, PCD 4×100 only
• Passat and Passat Variant (35i) with PCD 4×100, 09-1987 to 02-1997: all versions from 74 kW

Minimum wheel size: 17 inch. Check the clearance with the fitment template (WFC, Wheel Fitment Chart) before you order; a wheel spacer is sometimes required.

Technical specifications

• Manufacturer: V-Maxx Autosport (Netherlands)
• Part number: 20 VW330 01-4
• Brake discs: 330 mm, two-piece, grooved, high-carbon steel with floating aluminium bell
• Calipers: 4-piston, forged aluminium, red (RAL 3020) as standard
• Brake pads: V-Maxx sport brake pads with TÜV approval
• Minimum wheel size: 17 inch
• Approval: TÜV §19.3
• Axle: front axle
• Included: calipers, brake discs with aluminium bells, brake pads, vehicle-specific adapters and fitting hardware

Fitting and delivery

Fit the kit according to the V-Maxx fitting instructions supplied. The brake kit is only suitable for cars with original steering knuckles. Do not use wheel cleaner on the brake kit, as it attacks the aluminium; mild soap is sufficient. If you drive a lot and hard on the track, V-Maxx advises removing the dust seals from the calipers.

The kit can be extended with a different caliper colour (black, blue or yellow at extra cost), V-Maxx Steelflex steel braided brake hoses for the front axle (500 mm, set of 2, PTFE inner hose, with TÜV approval), Ferodo brake fluid (500 ml), a V-Maxx wear indicator set and an extra set of Ferodo FDSR216 DS Performance brake pads (without TÜV approval). Delivery time: 4 to 7 days.

A Golf III or Corrado that brakes at the end of a session the same way it did at the start: that is the work of 330 mm discs and aluminium 4-piston calipers.

Why choose this big brake kit Golf 3?

This big brake kit Golf 3 tackles the biggest weak point of the original brakes: heat. Caliper, bracket and bell are made of aluminium, which conducts heat about 5 times better than steel, and the discs have directional cooling channels. As a result, the kit keeps braking consistently under repeated hard braking, and with TÜV approval you can also drive it on public roads.

Frequently asked questions

Which version do I need?

First check the PCD. This kit is for 4×100; for 5×100 there is the 20 VW330 13, and for the Passat 35i with 5×100 without Plus chassis the 20 VW330 35. For the Golf III and Vento there is also a 290 mm kit: the 20 VW290 03, or the 20 VW290 03+AD including steering knuckles.

Does the big brake kit Golf 3 fit behind my wheels?

The big brake kit Golf 3 requires wheels of at least 17 inch. Check the fitment template (WFC) before you order; depending on the wheel, a wheel spacer is required.

Is the big brake kit Golf 3 suitable for a car with more power than standard?

Yes, definitely. A Golf III, Vento, Corrado or Passat with more power than standard benefits most from this kit: 330 mm discs and 4-piston calipers give more braking power and much less fade. The kW limits in the application list refer to the original factory output, and with an officially approved power upgrade the TÜV approval remains valid.

Does the kit fit a Golf III with rear drum brakes?

No. For the Golf III, Golf IV Convertible and Vento, the kit is only suitable for cars with original rear disc brakes.

What is the delivery time?

The delivery time is 4 to 7 days.
