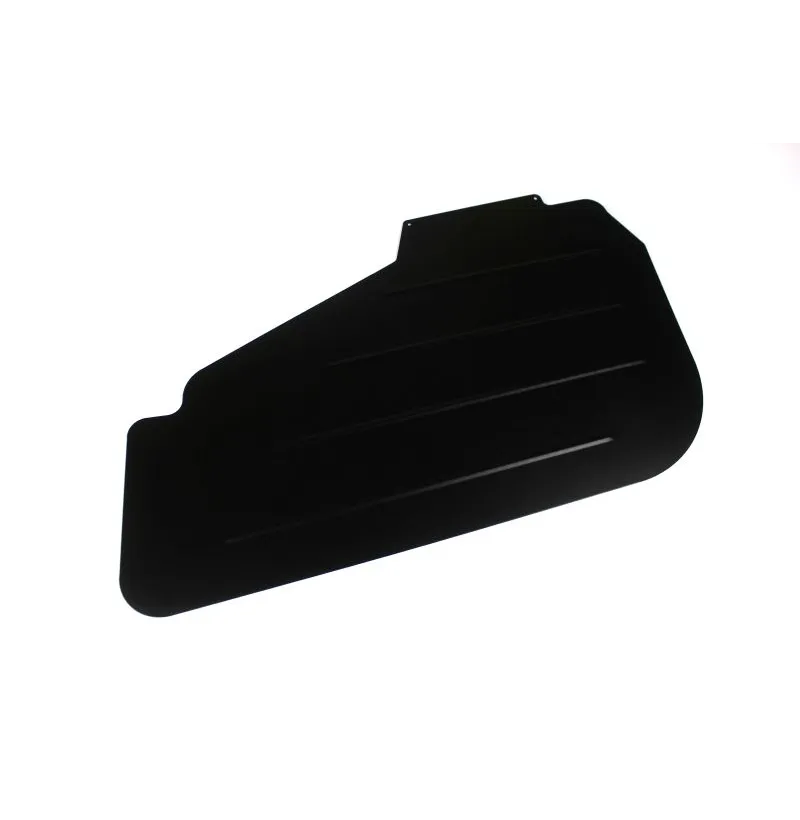

BMW E46 Saloon Front Half Door Panels

These E46 saloon half door panels are lightweight aluminium panels for the front doors of the BMW E46 saloon. They replace only the lower part of the door trim. The original upper part with the door handle and armrest stays in place, so the door still looks finished while you save weight.

The panels are made for E46 drivers who want to make their car lighter for drifting, rally or circuit use, but do not want a completely bare interior. On doors made of laminate, they also help to make the door stiffer.

Key benefits of these E46 saloon half door panels

• The original upper part of the door trim stays in place
• Light: about 0.9 kg per panel
• Made of 1 mm thick aluminium
• Powder-coated black on one side
• Decorative and stiffening on laminate doors
• CNC-cut for a neat fit
• Supplied as a pair for left and right

Suitable for

BMW 3 Series E46 saloon, front doors

• BMW E46 saloon, left and right front door

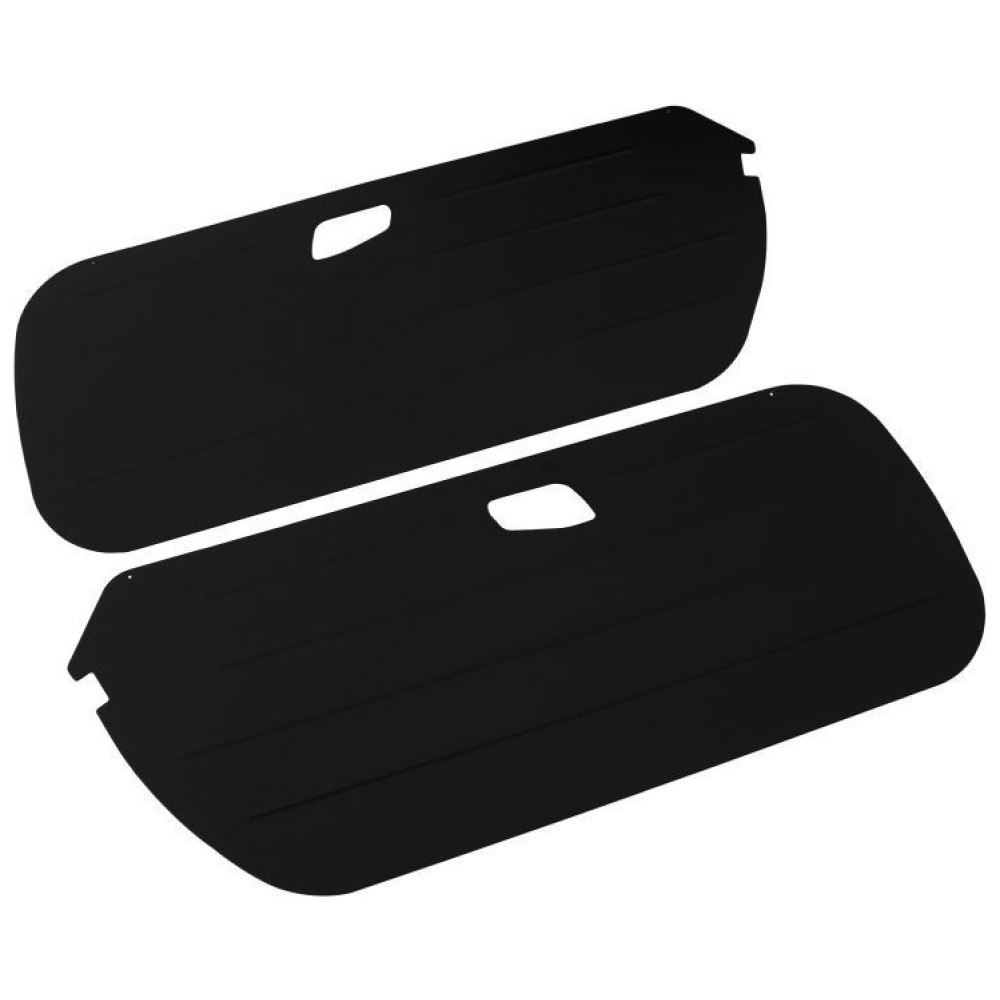

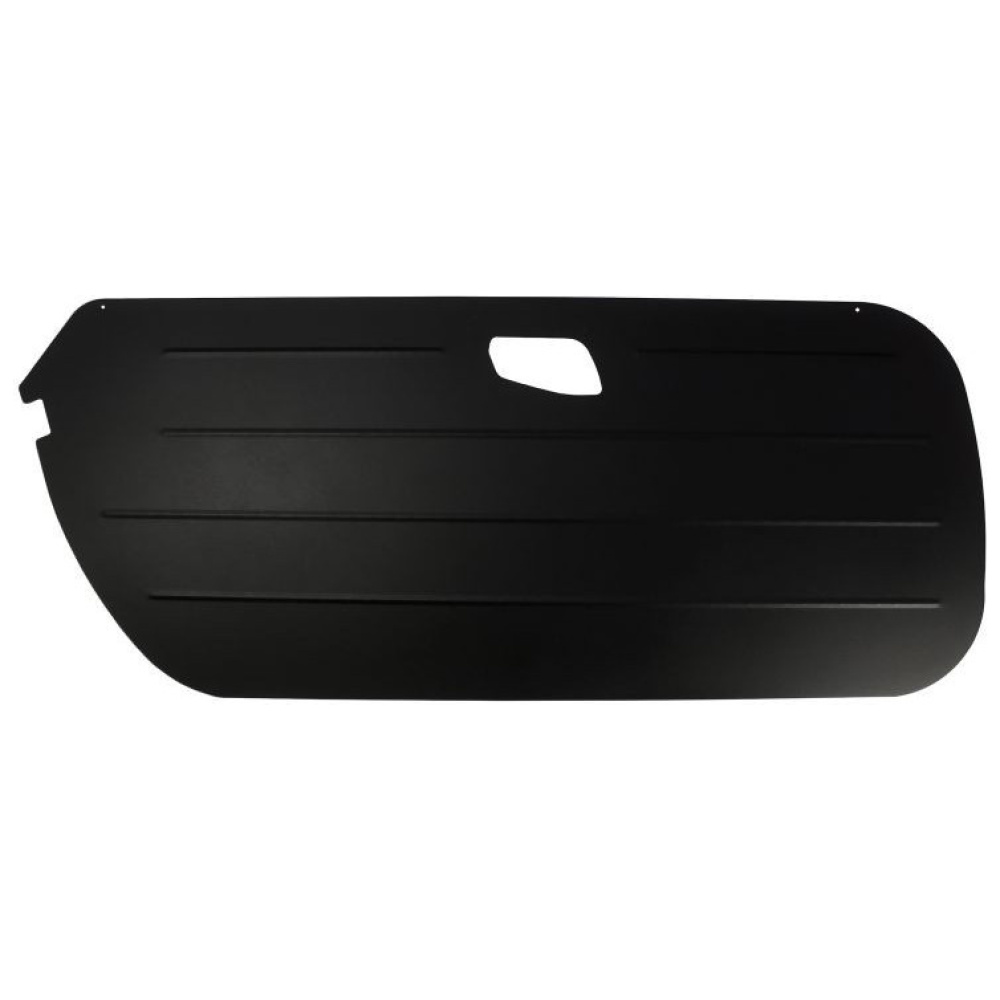

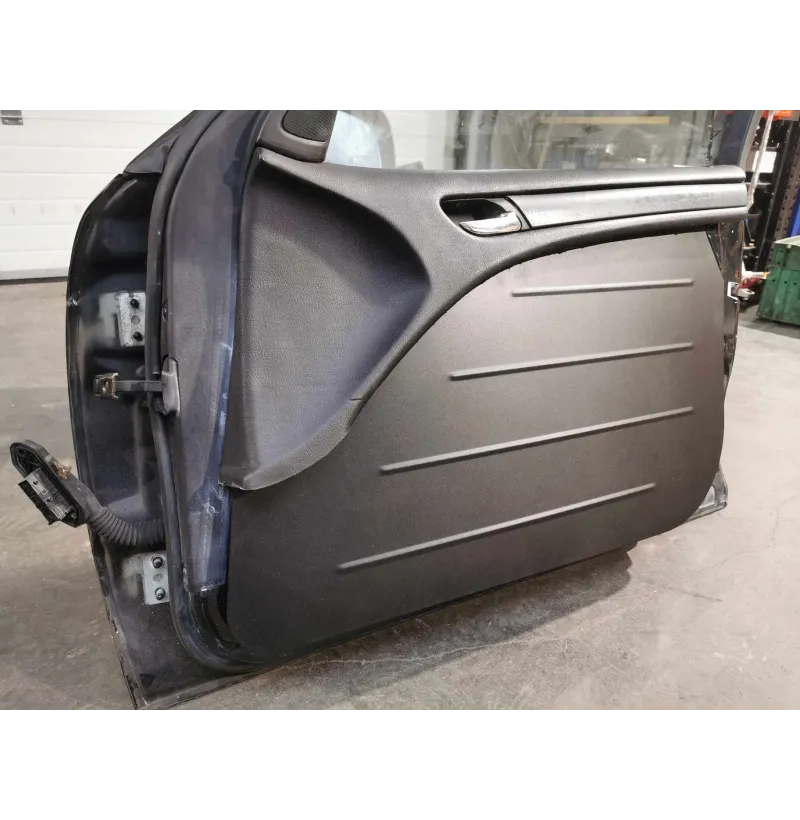

The photos show an example on an E46 saloon. A separate set is available for the rear doors, and the E46 coupé has its own panels.

Technical specifications

• Item number: 0204
• Type: half door panels (lower part of the door trim), front
• Material: aluminium
• Thickness: 1 mm
• Weight: about 0.9 kg per panel
• Finish: powder-coated on one side, black
• Production: cut on CNC machines
• Supplied: per pair
• Fitting: your choice, rivets or sheet metal screws recommended

Installation and delivery

For fitting the E46 saloon half door panels, the original door trim has to be shortened: the lower part comes off and the upper part stays on the door. Saw or cut the original trim along the line where the aluminium panel meets it. Then hold the panel in place, mark the holes and fix it. How you fix it is up to you; rivets or sheet metal screws are recommended.

Finish the cut edge of the original trim neatly and check that the window mechanism, the wiring and the door lock are still clear. A strip of foam tape between the door and the panel prevents rattling.

You will find all other sets in our aluminium door panels category, including the panels for the rear doors of the E46 saloon.

Original at the top, light aluminium at the bottom: this way your E46 saloon keeps a tidy interior and still loses weight.

Why choose these E46 saloon half door panels?

A full aluminium door card makes the door light, but also bare. With the E46 saloon half door panels you choose the middle ground: the handle and the armrest stay in their original place, and the heavy lower part makes way for thin aluminium. That feels familiar when getting in and looks clean in a drift or club sport car.

The black powder coating goes well with dark original trim. In addition, the panels add stiffness to laminate doors, for those who have already replaced the original steel doors.

Frequently asked questions

Does the upper part of the door trim stay in place?

Yes. The E46 saloon half door panels replace only the lower part. The original upper part stays on the door.

Do I have to modify the original door trim?

Yes, the original trim has to be shortened so that the aluminium panel fits underneath it.

How many panels do I get?

A pair: one for the left and one for the right front door.

How heavy are the panels?

Each of the E46 saloon half door panels weighs about 0.9 kg.

Are there also panels for the rear doors?

Yes, they are available as a separate set.
